Doors & Jambs

One of a kind

As the materials we use for our doors are unique, so will the doors be. Below are listed the standard types of doors, basically separated by installation types.

When specifying any door consideration needs to be given to:

1. Exposure to weather or use, what will the door have to put up with?
2. How well sealed does the door need to be for temperature, sound, dust and bugs?
3. How secure does the door need to be, who needs access and how?
4. How big does the door need to be? And how best to hang it?
5. What sort of impression are you going for?
6. Do you need natural light and ventilation at the doorway?

Typically our doors vary in thickness depending on the application and hardware required. Our barn doors are typically 32mm thick, open frame doors 42 mm thick and Flush panel doors that are hinged are 50mm thick, Pivoted 60mm and extra large pivot doors can be 80mm thick + as needed.

Door Types

Listed Below are the typical types of doors that we make and how we describe them. We have yet to find an opening we can't fit a spectacular door too, so if you have something a bit special in mind, don't hesitate to ask.

Barn Doors

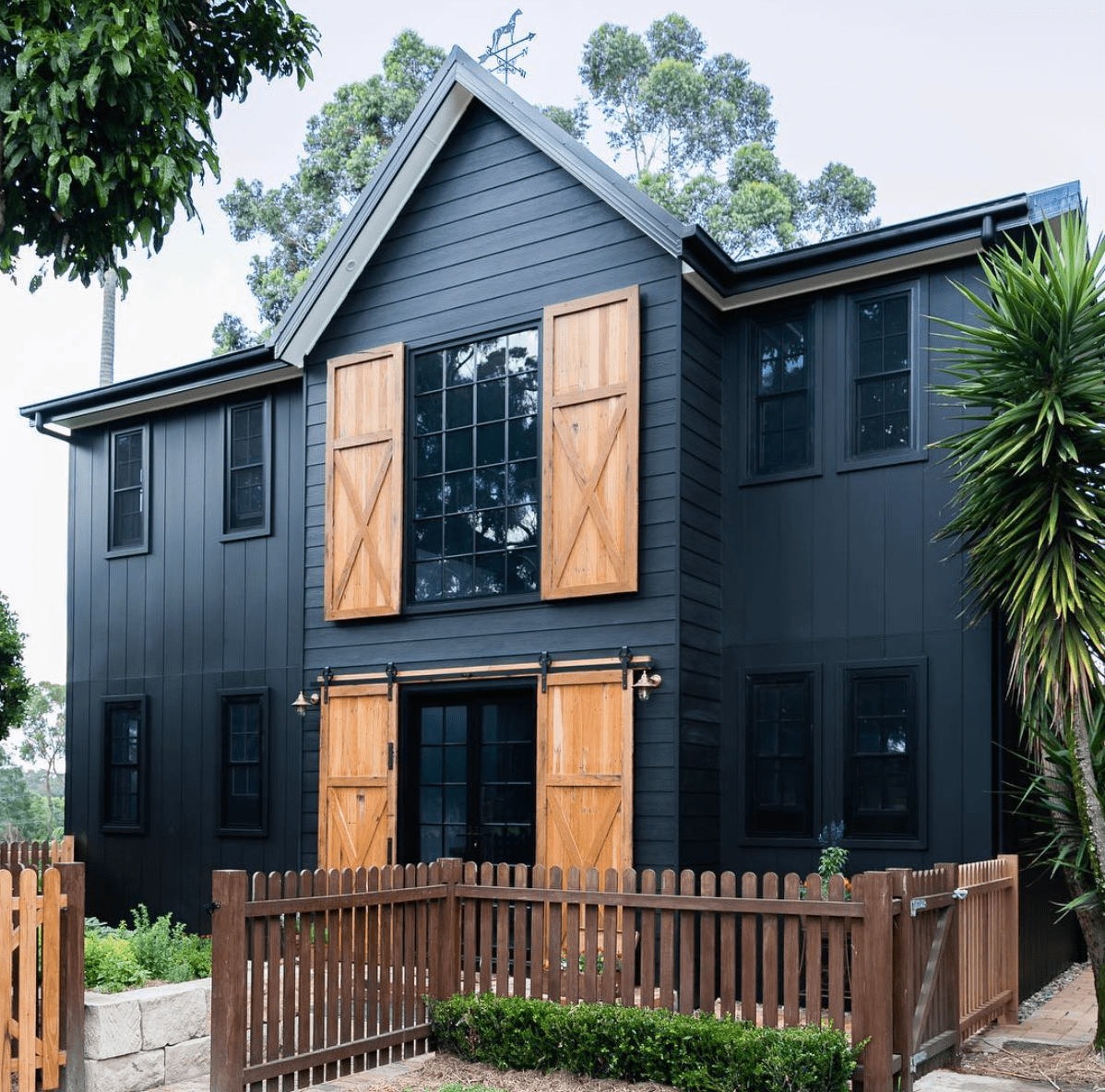

Barn Doors are typically thought of as doors that run on simple bar tracking with exposed wheels as in the images below. The doors used on that track vary from the simple Traditional Ledged Braced  door, as in the first image and gets increasingly sophisticated as you add bracing, perimeter frame or cladding as required. These Ledge and Braced doors can be used for lots of applications including shutters, gates, bathroom doors, room dividers and even doors for Barns..... These are solid timber and can be made as rustic or pristine as the situation demands.

Typical Finishes/ looks;

• Industrial/Rustic
• Old unfinished timbers with varying degrees of weathering. Brushed and carved as necessary to prevent splinters with potential for exposed bolts and nail holes
• Finished with Matte Oil or Acrylic
• Very Organic and natural, associated with respect for environment, legacy and country values
• Hamptons
• Satin Painted finishes with subtle timber grain showing through so clearly solid timber
• Can have clear timber or stone highlights/ rub-throughs
• Structurally over designed to inspire confidence and a respect for classical design setting a context of "old money" and stability
• Scandinavian
• Filled and shaped to the minimum materials required to achieve the need.
• Sanded and filled to highlight features and finished in Matte oil or Acrylic
• Clean and simple, no unnecessary features. Simply filled and sanded with a matte oil or acrylic setting the design context of critical thought and a bit of fun

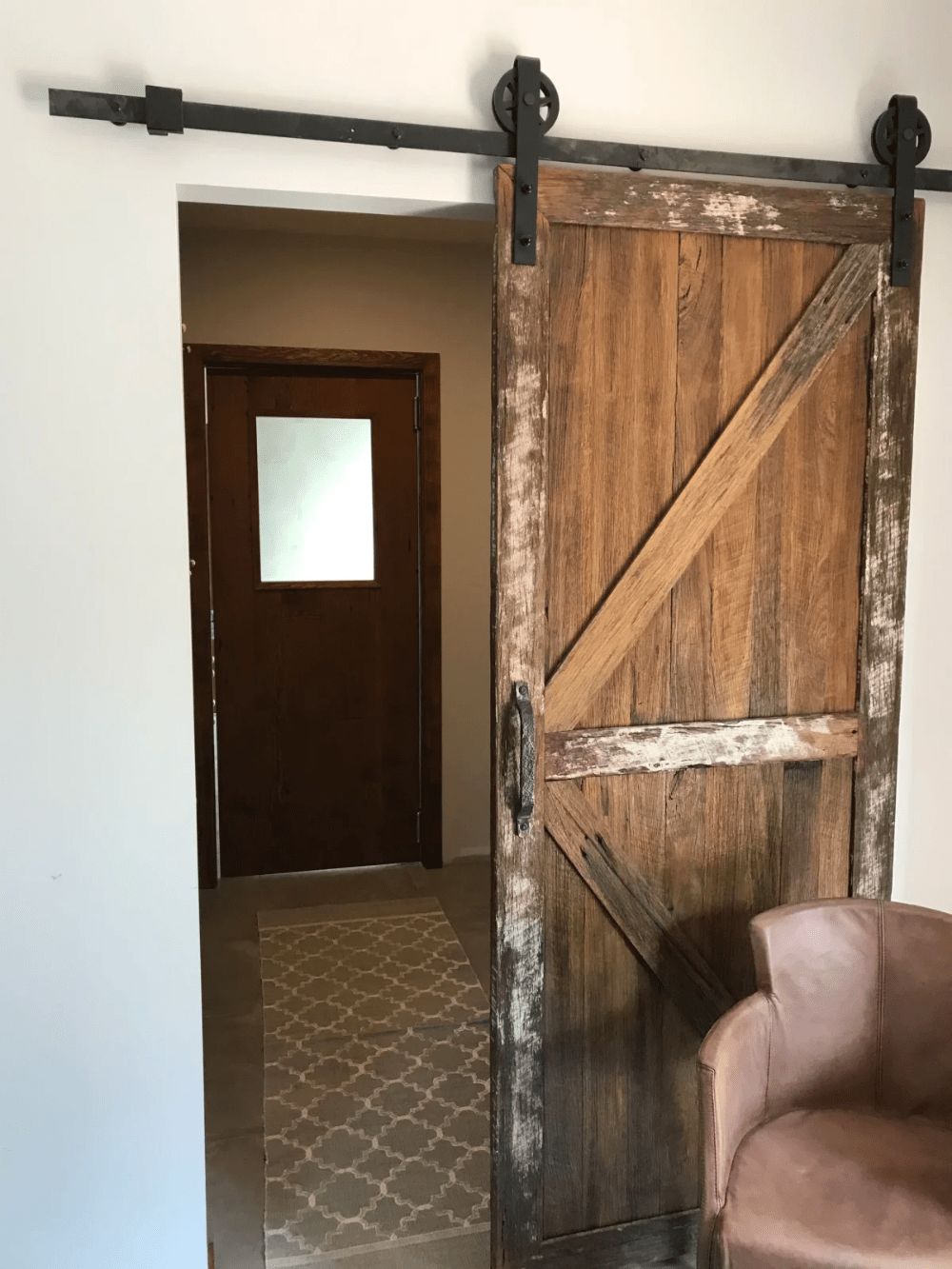

Image below is an Industrial/ Rustic Ledge and Brace Barn door in hardwoods. Wire-brushed and finished with matte Oil. Gorgeous look, but comes with gaps and holes so not ideal for bedrooms and bathrooms.

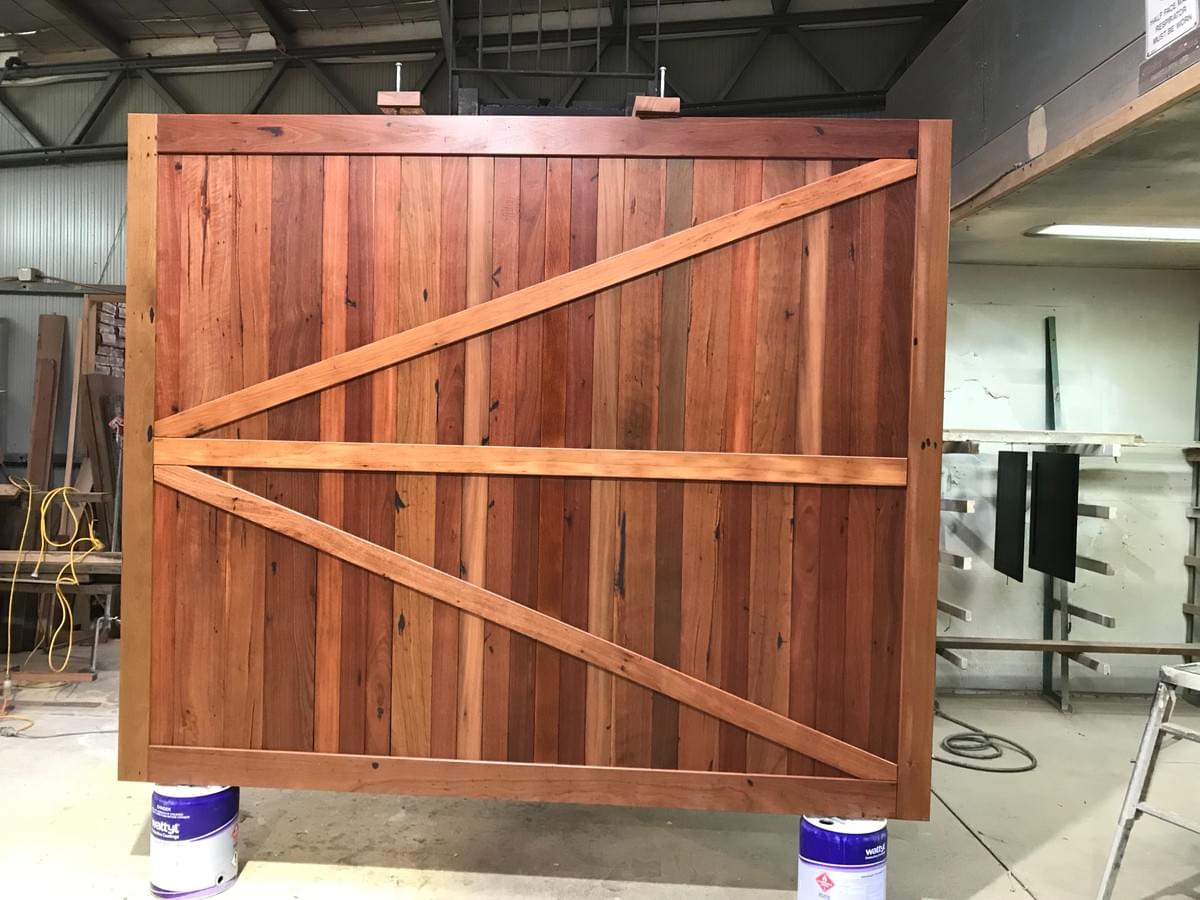

The image below is a Rustic Ledge and Brace door with perimeter frame plus Osmo Oil finish. Install job Cost Approx. $3500 installed.

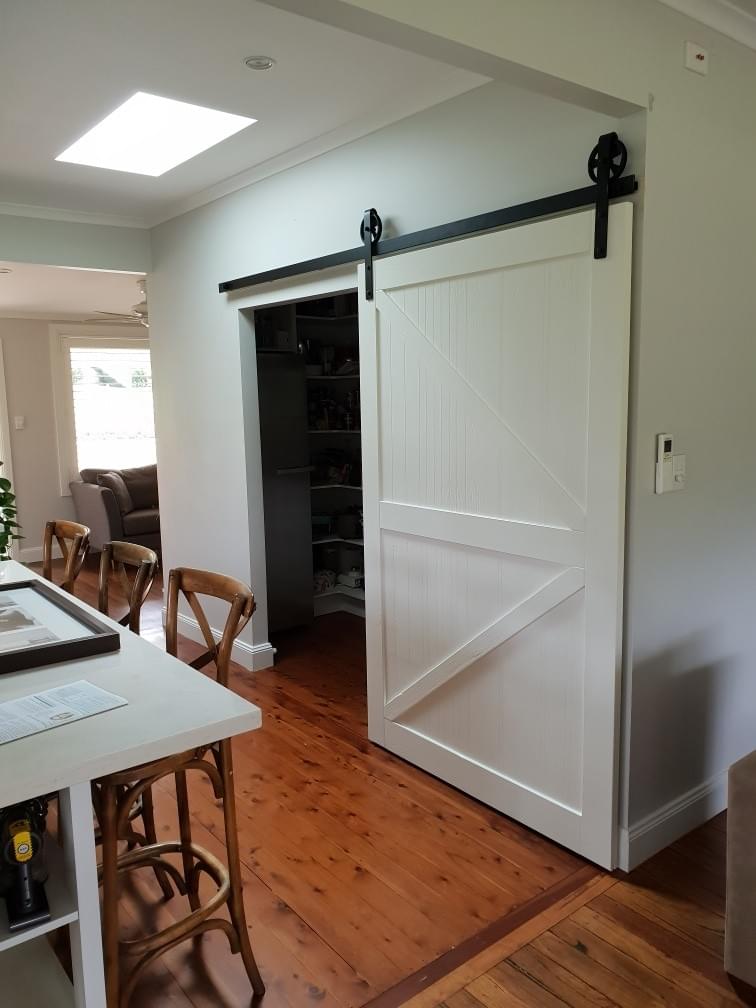

Image below is an oversized Hamptons Style using Brushed recycled softwoods to highlight the grain and subtly indicate as solid timber and not MDF. Install job cost approx. $3200

Specifications

Typically Internal Use, but with appropriate timbers and finishes can be used externally

Typically 32mm thick, Solid timber frame with 12-15 mm thick timber panelling and bracing.

Weight Hardwood = 30kg/m2

Weight Softwood = 20kg/m2

Maximum weight per door for Open Rail Tracking 115kg

Typical Width per door up to 1600mm

Typical Height per door up to 2700mm

Barn doors can be made to pretty much any size subject to material availability. Really big doors may need to be assembled on site and may require different sliding systems to take the weight.

Flush Panel Doors

Flush Panel doors (FPD) have planks of solid timber faces fixed to a Cross Laminated Core that depending on application can be solid or incorporate recycled cardboard or polystyrene to reduce the weight.

Our standard FPD's are suitable up to BAL 19 bushfire Zones and with Solid cores can be used up to BAL 40 Bushfire Zones.

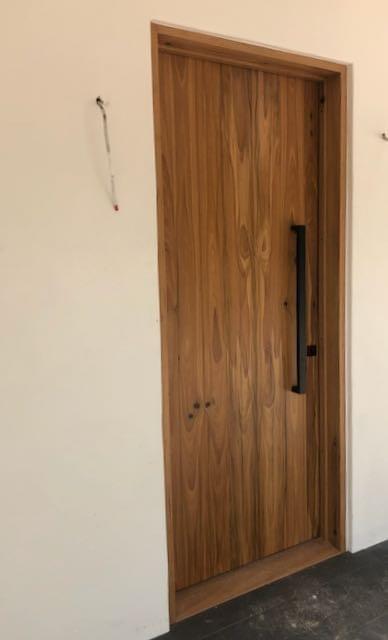

The image below is of a standard flush panel door in blond timbers. Including Jambs, Hardware, Finish and installation the total cost would be approx. $4200

The image below is an Exterior Vertical Flush Panel Door, in blonde timbers with V-Grooving and Rough Sawn plus Osmo Oil finish. Also including custom Jambs, Side light and Plantation Shutters for privacy. Job Cost Approx. $5800 .

Open Framed Doors

Open framed Doors can have Timber, Glass or Metal Inserts doors as needed. The glass or panels can be divided in any direction by an enormous range of mouldings plus the panels can be arranged in any combination. We engineer the timber frames to maximise stability and durability allowing for much thicker and thereby more solid and secure than normal doors.

The image below is an Open Frame Pivot Door in American Walnut including Jambs, Pivots and disgner glazing beads plus finish in External Acrylic. Install job Cost Approx. $8,600 .

Shaker Doors (Traditional Panel Doors)

Shaker Doors have recessed panels or otherwise known as 'framed profile'. Essentially a Shaker door is a 3 piece door (or a 5 piece door). Each piece being a component of the door, i.e 3 piece door would be made up of 1x outer frame, 2 x flat panels.

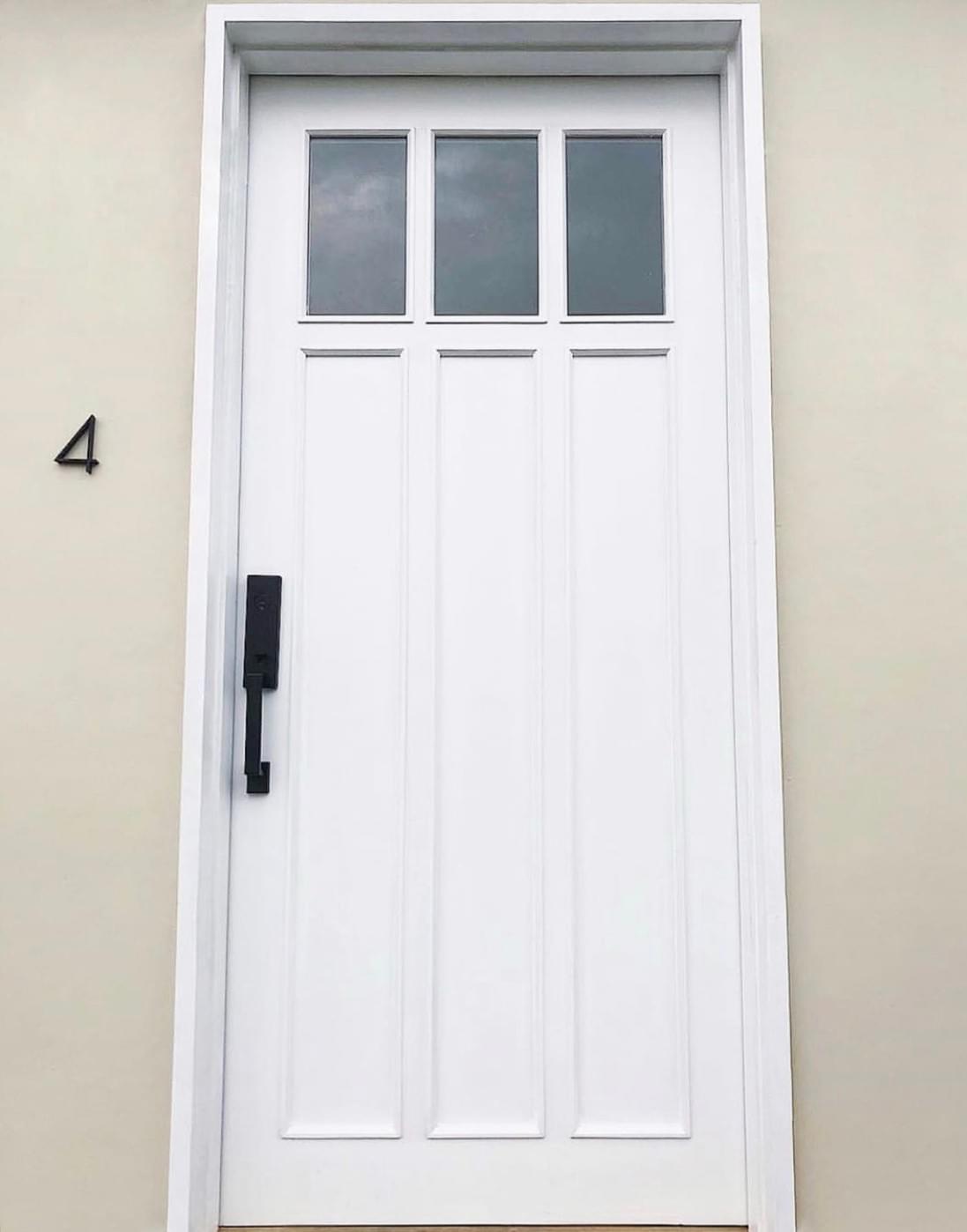

Image below is a 7 piece shaker door - 1x outer frame, 3x glass panels, 3 flush panels, 6x sets of trims. This door was Hampton styled door, Wire-brushed and left Raw for client to finish. Install Price including factory Paint finish approx. $4,500

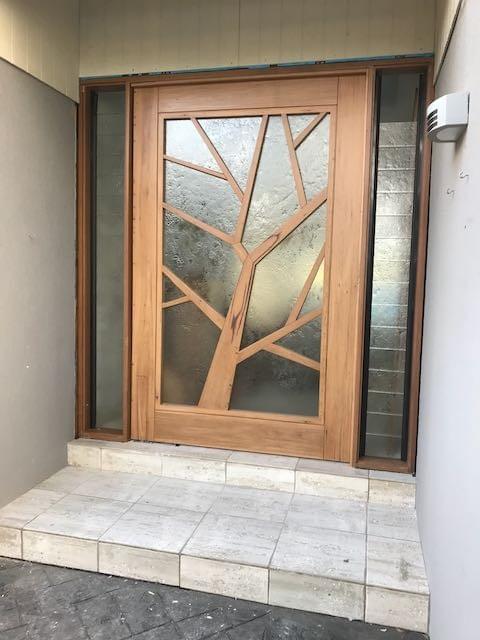

The door below is a 60mm thick pivot door with Breezway sidelights. The door is over 1600 wide and the glass for the door was custom made by a local artist. The approx. cost of this door installed was $12,000

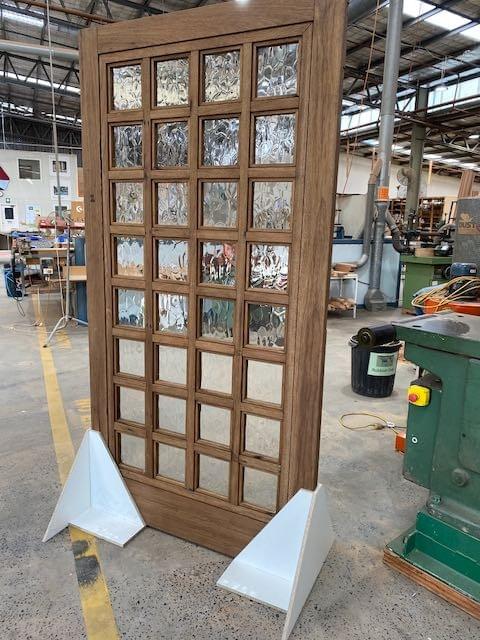

Santa Fe Door is a many panel door as in the image below. Installed with Hardware and Finished expect this to cost approx. $6500 including the retro style wavy glass.

Doors come in the following standard finishes;

• Industrial/Rustic
• Old unfinished timbers with varying degrees of weathering. Brushed and carved as necessary to prevent splinters with potential for exposed bolts and nail holes
• Finished with Matte stain or clear Oil or Acrylic
• Very Organic and natural, associated with stability, legacy and country values
• Hamptons
• Satin Painted finishes with subtle timber grain showing through so clearly solid timber
• Can have clear timber or stone highlights
• Structurally over designed to inspire confidence and a respect for classical design setting a context of "old money" multigenerational wisdom and stability
• Scandinavian
• Filled and shaped to the minimum materials required to achieve the need.
• Sanded and filled to highlight features and finished in Matte oil or Acrylic
• Clean simple designs highlighting the function and setting a context of innovation, critical thinking and thrift.
